MI Measuring Table

Description

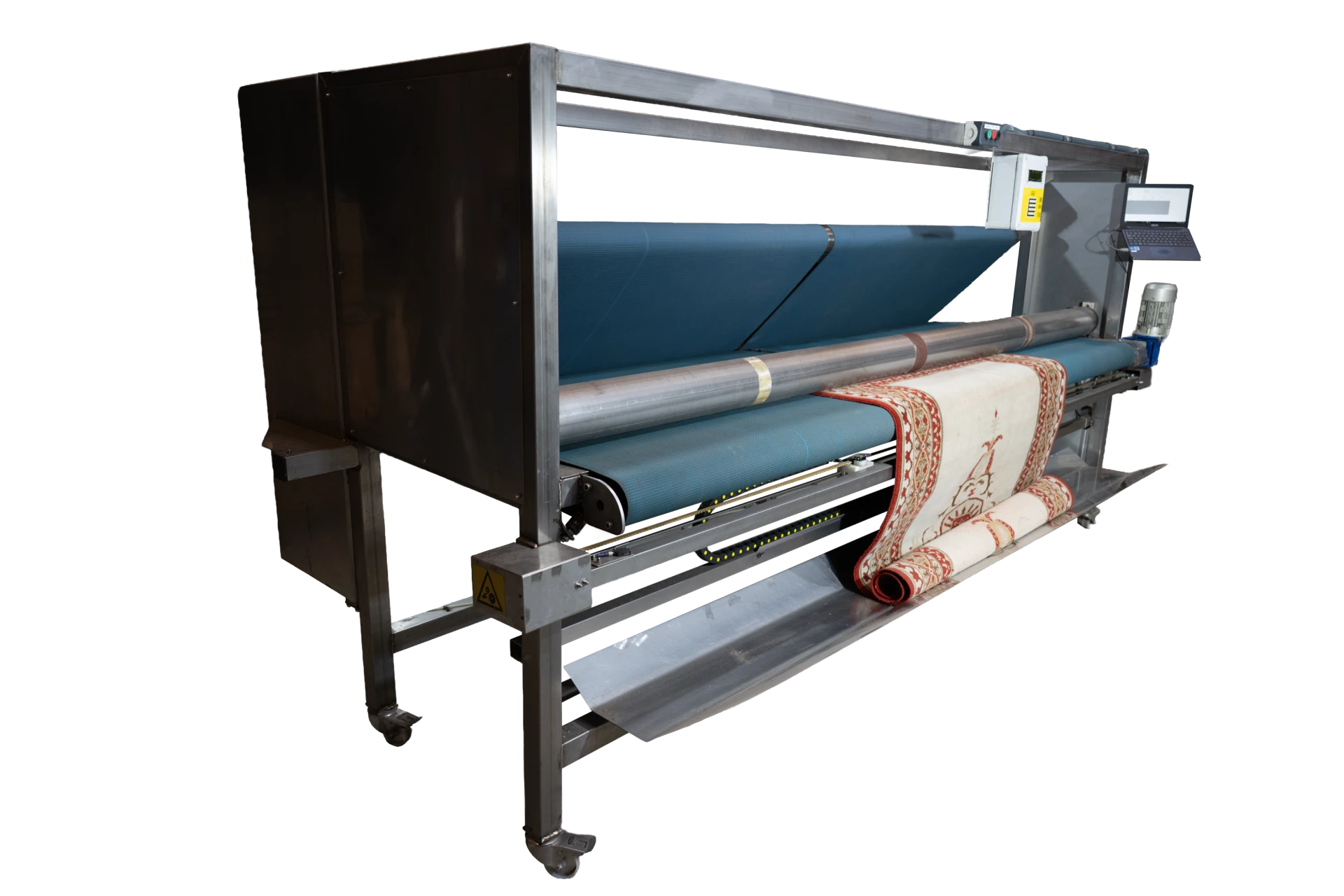

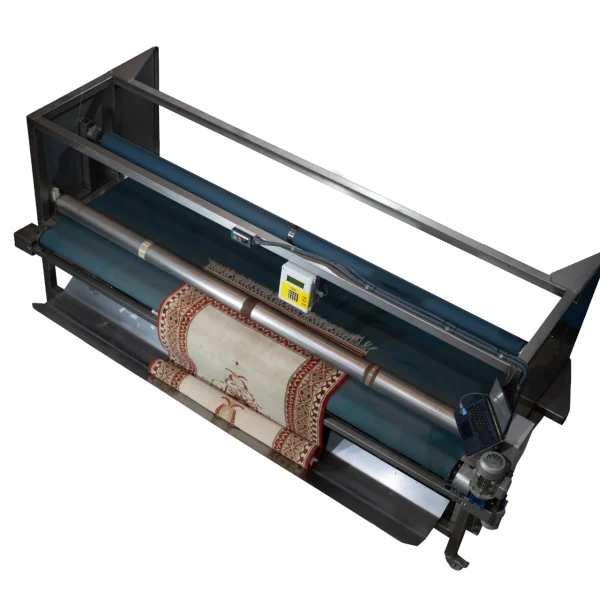

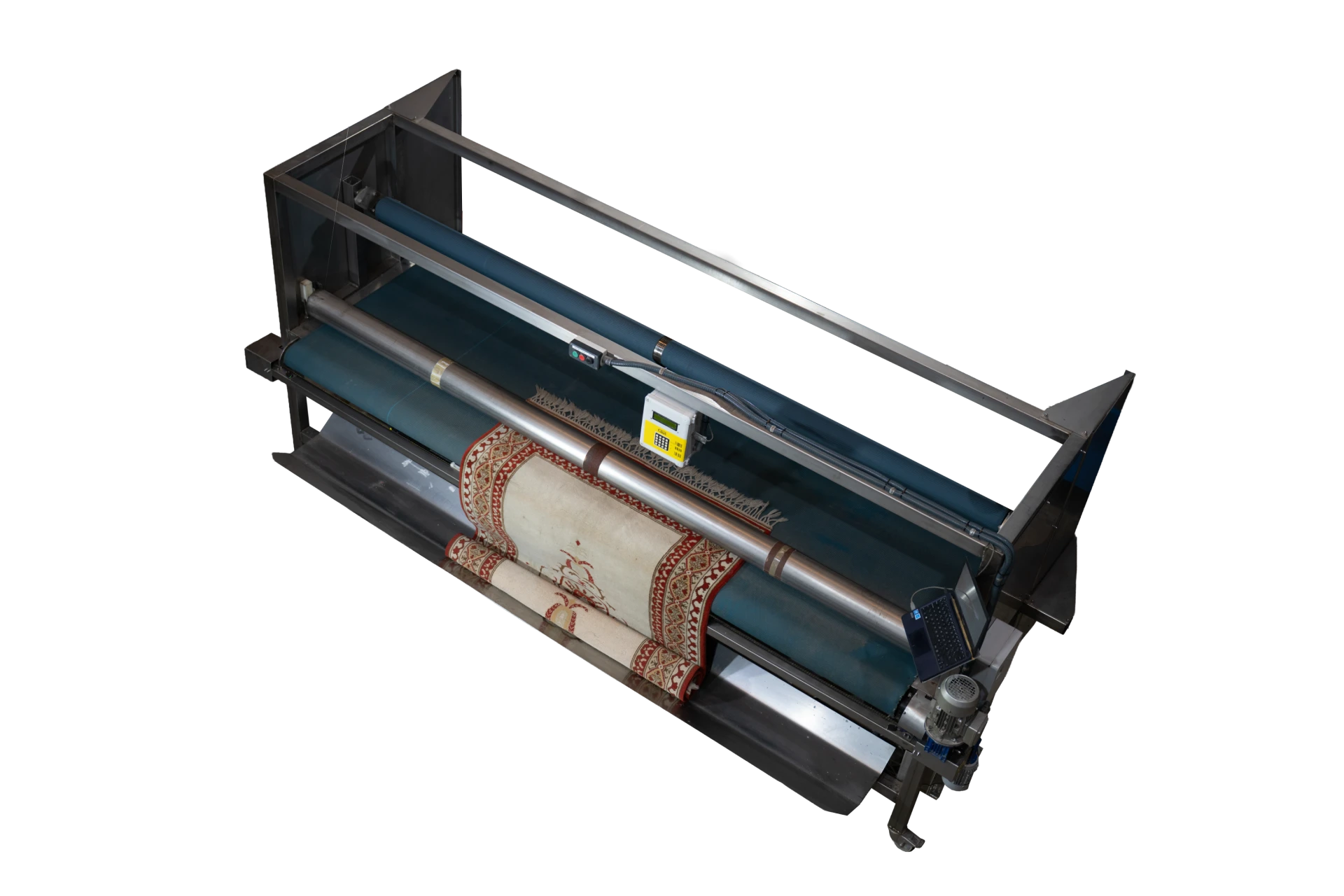

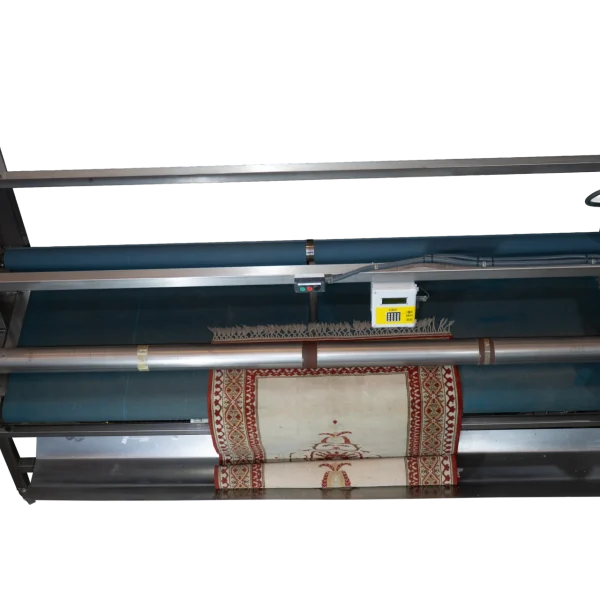

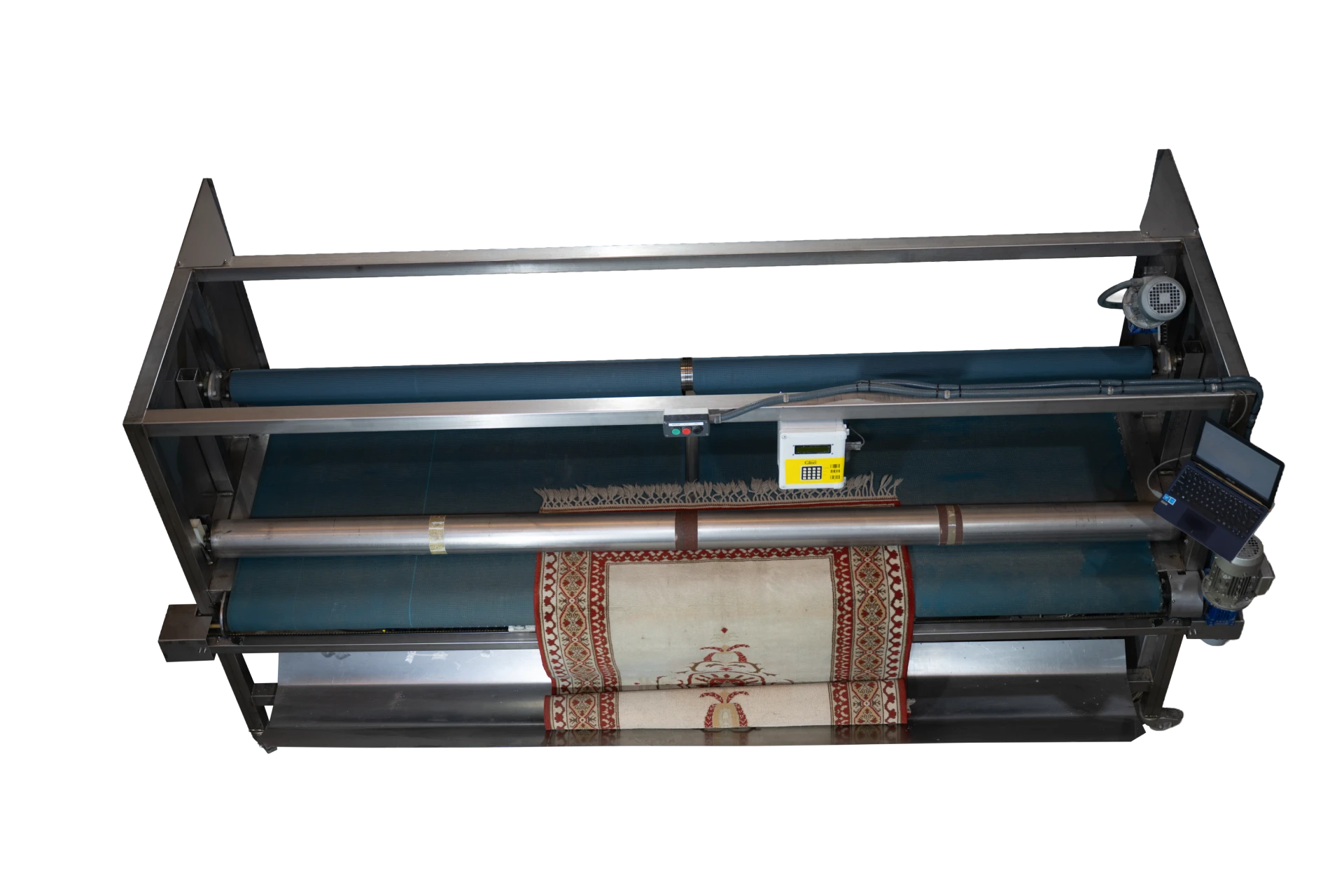

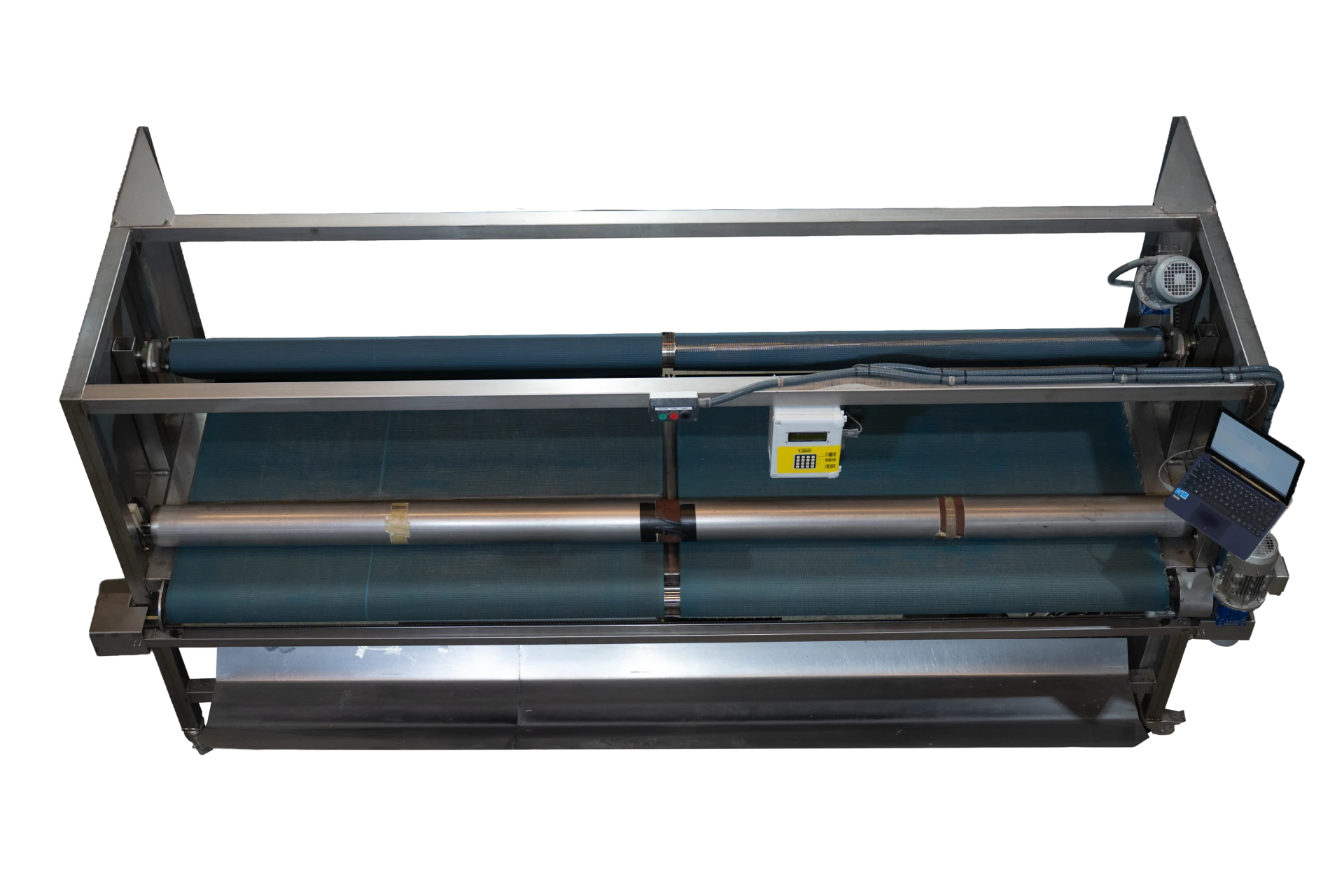

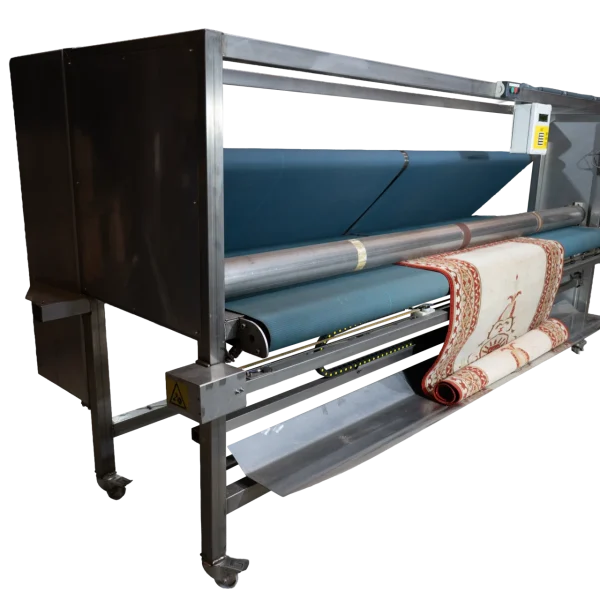

The Catinet carpet measuring machine is designed to perform the complete measurement of the carpet in a single station, quickly, accurately and with a single operator. The rug is inserted at the front, moves automatically on a conveyor belt and is measured both longitudinally and transversely using high-precision electronic sensors. In just 10 seconds the process is complete: the carpet is measured, rolled up automatically and goes out of the back directly to a transport trolley. The entire structure is made of AISI 304 stainless steel, which guarantees durability, hygiene and a long service life in demanding industrial environments.

100% AISI 304 stainless steel structure, which guarantees high durability, maximum hygiene and excellent resistance to corrosion in intensive environments.

Maximum operational safety, designed to meet the highest standards of occupational and industrial safety and protect the operator.

High performance and reliability, ensuring continuous operation and always homogeneous draining results.

Reduced electricity consumption, with savings of more than 20%, optimising energy and reducing environmental impact.

Minimal maintenance, which reduces downtime and service costs over the entire service life.

Lower total cost of ownership (TCO) thanks to the combination of energy efficiency, low maintenance and long durability of the Components

Perform the complete measurement of the carpet (length and width) in a single pass, in a compact space and with a single operator.

Move the carpet on the table by means of a conveyor belt, facilitating the handling of large pieces and carrying out the final winding automatically.

Complete the measuring and winding cycle in approximately 10 seconds, with the possibility of varying the feed speed according to the work needs.

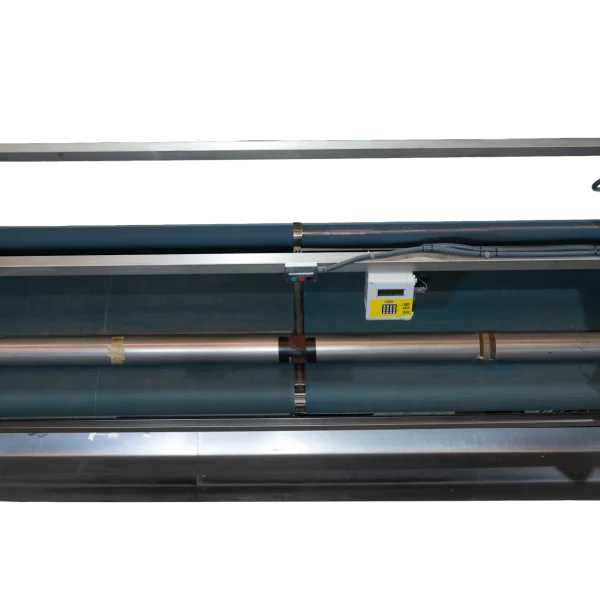

Integrate a measurement display with large luminescent characters, easy to read for the operator even from a distance.

Have data output by computer, allowing connection to a computer to automatically record the information of the carpet or to the centralized system itself.

Incorporate an automatic measurement and registration system that makes it possible to: register the carpet in the system (dimensions, type, customer, operator), print identification labels and generate data for billing.

Start the cycle with a single button, simplifying the operator's work and reducing set-up time.

Adequate power supply according to the machine configuration, to power the spin motor and automatic control system.

Compressed air supply for the operation of the pneumatic elements associated with the locking or safety system (depending on the model).

Level and resistant support surface, without the need for special foundations, thanks to the integrated vibration damping system.

Technical Data

Technical data	MI 32	MI 42
Maximum productivity	100 rugs/h/operator	100 rugs/h/operator
Maximum width of the carpet	3 m.	4 m.
Maximum measurement error	1cm	1cm
Forward speed	0.5 to 2 m/s	0.5 to 2 m/s
Voltage	2 x 230 V	2 x 230 V
Total installed power	1 Kw.	1 Kw.
Dimensions Long	3.5 m	4.5 m
Dimensions Wide	1.5 m	1.5 m
Dimensions Height	1.9 m	1.9 m
Weight	520 KG	675 KG
Material	Stainless Steel 304	Stainless Steel 304
